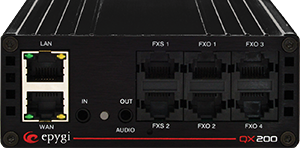

QX200 IP PBX

QX200 IP PBX

Product Overview

The QX200 expands the reach of the QX50 by adding 2 more FXO ports, extending to 64 external simultaneous calls, 24 extensions, and a larger capacity of call recordings and audio conference ports. Our most popular model is expandable to 20 extensions.
All QX PBX devices allow multiple SIP trunk connections and support a large number of certified SIP phones that are auto-configured with the system. For system configuration, log in to the GUI through any browser. If you pair the PBX with one of our gateways, you can configure both through the PBX GUI.

QX200 Datasheet

Key Facts

Interconnection with  QX Gateways

Analog phones 2
IP phones 24
Additional IP phones with keys 176
Total phones 202
Concurrent calls 64
FXO PSTN ports 4
Ethernet LAN port 1
Ethernet WAN port 1
Audio In port 1
Audio Out port 1
SD slot 1
GATEWAYS Recommended Number (max)
QXFXO4 16
QXE1T1 2 (E1 mode), 3 (T1 mode)
QXFXS24 8
QXISDN4 8

All products are guaranteed a One Year Warranty and a Two Year Warranty for European Union customers. An additional Three Year Warranty is available for purchase. Click here for more information about our product support and warranties.

NOTE: Customers can still purchase licenses for older Quadro products no longer available for sale.

Features Included with Your QX IP PBX

The following is the list for group of features available for free on your QX IP PBX product.

Automatic Backup/Download of QX Configuration
This feature automates scheduled backups of QX configurations, saving them to designated locations or sending them via email.
 Automatic Firmware Updates for Installed IP Phones
This feature allows your QX to identify the firmware on each installed IP phone and automatically load the proper firmware updates.
 Automatic QX Firmware Update
This feature provides automatic notification or firmware update when the QX IP PBX new SW becomes available on the Epygi Support Portal.
 Daylight Savings Time Adjustment
This feature allows your QX IP PBX to adjust for daylight saving time automatically.
 Custom Language Pack Support
Your system’s voice prompts, the QX, and the supported phones’ GUI pages can be configured to fit a variety of different downloaded languages.
 Customizing the System Voice Messages
You have the flexibility to customize system voice messages either for specific extensions (user and auto-attendant extensions) or for all user extensions on QX simultaneously. There are several methods available for customizing these messages: you can upload a previously recorded file in the designated WEB configuration page, record a new voice message directly on the phone using the Voice Mail Service (VMS), or create a new message on the IP phone using the Record from Extension service, which is accessible for extensions.
IP Phone Plug-and-Play
Plug-and-Play allows the list of supported IP phones to automatically acquire an extension and an IP line on the system and auto-configure without you having to intervene.
QXFXO4, QXE1T1, and QXFXS24 Gateways Auto Configuration
The Auto Configuration allows your QX IP PBX to detect and automatically configure ports added via the QXFXO4, QXE1T1 and QXFXS24 Gateways. The new ports appear in the IP PBX’s Graphical User Interface (GUI).
 Enhanced System Logging Support
The QX IP PBX’s Graphical User Interface (GUI) has extensive logging utilities to assist in gathering information for problem resolution.
 Remote IP Phone Support
You can access all features of the QX IP PBX remotely, just as if you were physically present in the office.
 User Right Management
This is a valuable tool for QX administrators, enabling them to define specific restrictions for certain PBX users when managing the QX configuration. This service empowers administrators to control GUI access, granting or denying permissions to various Web GUI configuration pages for different users.
 Voicemail Setup via Phone
This feature allows the voice-enabled wizard to guide you through setting up your personal recorded username, password, and voicemail greeting per extension.

Auto Attendant with Standard and Customizable Scenarios
This Interactive Voice Response (IVR) system replaces a human operator and directs calls to the appropriate extensions or voice mailboxes. It engages callers through pre-recorded or synthesized audio prompts.
 Call History for the Auto Attendant Custom Scenario
Input choices configured within auto attendant custom scenarios, selected by external callers as they navigate these scenarios, are recorded and stored as historical data. This information can be retrieved, processed, exported as XML files, and analyzed. This analysis helps evaluate the effectiveness of the pre-configured custom scenarios, allowing for informed decisions and improvements if needed.
 Call Hunting
This ensures that incoming calls are directed to multiple extensions in sequence, enabling the call to be answered promptly by the first available person.
 Simultaneous Ring
This feature allows incoming calls to ring simultaneously with several extensions so that the first available person can answer the call.
 Call Pickup
This allows you to define pickup groups by grouping extensions. Any phone in the building can answer a call ringing on another extension within the designated pickup group.
 Call Queue
This feature enables incoming callers to be placed in a queue where they can listen to a personalized recorded message. If unanswered within the specified timeframe, the caller can be directed to voicemail or redirected to another extension, ensuring efficient call management.
 Extension Status
This allows a receptionist’s phone to monitor multiple managers’ phones and provide information on the extension’s status – off-hook, on-hook, or ringing.
 Hot Desking
Hot Desking is perfect for offices with multiple employees who use a shared physical phone at different times. It allows them to log in to the handset and use it as their personalized extension, enhancing flexibility and workspace efficiency.
 Multi-Company Receptionist
Enables one receptionist to handle calls from designated numbers, each associated with a specific company. This efficient setup not only saves time but also optimizes your budget effectively.
 Emergency Interrupt
Emergency Interrupt enables the immediate interruption of active calls, establishing a direct connection to the called extension in emergency situations.

Call Hold
Call Hold keeps one line “off hook” and connected while you make or receive a call on another line. You also have the ability to take the original call off hold and resume the conversation.
Call Park
Call Park allows putting the call on hold at a specific Call Park extension number to be resumed by someone on another phone. That person can pick up the call by keying the Call Park extension number. If no one is available to take the call at the other location, it will “ring back” to the original extension alerting the person who originally parked the call.
Call Park on the Auto Attendant
Call Park on the Auto Attendant supporting both Park and Page. To automatically answer the call from an external caller, park it on a free Call Park extension within the specified group of Call Park extensions, and page a paging group announcing there is a call to pick up. Ideal for retail stores.
Call Transfer
Call Transfer enables you to forward the active calls to another destination.
Call Waiting
Call Waiting alerts you that you have an incoming call on an engaged line, allows you to hold your current call, take the second call and gives you the ability to switch back to the original caller.
Three-Way Conferencing
Three-Way Conferencing allows the caller and two other parties to speak together on one connection.
Emergency Interrupt
Emergency Interrupt allows to interrupt the active calls and connect directly to called extension in case of emergency.
Scheduling
Scheduling feature allows controlling the call routing rules and auto attendant scenarios automatically based on the preconfigured weekly schedules of working and non-working hours.

Call Blocking
This prevents calls from specific numbers from getting through, enabling you to avoid unwanted callers.
Direct Transfer to a Voice Mailbox
This enables callers to be directly transferred to another extension’s voicemail.
 Distinctive Ringing
This lets you customize ring tones for identified callers and categorize calls to specific lines (service, sales, or billing).
 Do Not Disturb
Redirects all incoming calls to your voicemail through the PBX, ensuring your phone won’t ring during the specified timeout.
 Hiding Caller ID
Blocks your phone number from being identified by the call’s recipient.

Auto Redial
Callers who get a busy signal will be alerted if the line they are calling becomes available during a specified period of time. You only need to pick up the phone to be connected to the number you were trying to reach.
Call Paging
Call paging allows you to dial into the overhead or external speakers of telephones in order to make voice announcements. We can do multicast paging groups and store and forward paging.
Park and Page
Park and Page to automatically receive a call, park it on a free group park extension and page a paging group. Ideal for retail stores.
Parent/Child Extension configuration
Parent/Child Extension configuration allows the creation of child extensions tied to a parent. Regarding the inbound/outbound calls the groups of parent/child extensions work as one extension on multiple devices. Child extensions do not use an IP line on the PBX. Ideal to use with eQall softphone.
Phone Book
Phone Book provides users with the ability to scroll through a company’s Global Contact Directory on the phone and dial the desired extension easily.
Intercom
Intercom allows for room-to-room communication via telephone sets with auto-answer on the called telephone.
Speed Dial
Speed Dial gives you the ability to “save” frequently called numbers so that they can be easily dialed on your extension with an assigned shortcut of digits.
Global Speed Dial Directory
Global Speed Dial Directory in addition to personal speed dialing codes for individual extensions, supports speed dialing codes shared between all extensions on the PBX.
Alarm
This feature allows setting an alarm call one time only or repeatedly for the desired days in a week. The alarm call will be activated automatically by the pre-configured date/time with a precision of up to seconds. You can use your own alarm message, by uploading it as a file or record it from the phone.
Dial & Announce
Dial & Announce supports calls simultaneously to the predefined list of destinations. When answering the call, the uploaded as a file or recorded from the phone audio message will be played to the receiver. The Dial & Announce calls can be activated automatically by schedule or triggered by a call to the extension which is configured with Dial & Announce service.
Emergency Interrupt
Emergency Interrupt is used to interrupt the active calls and connect directly to called party in case of an emergency.
Authorized Phones
The Authorized Phones service is used to define the list of trusted external users, allows accessing the auto-attendant Call Relay menu automatically by recognizing the originators’ Caller ID. When adding an authorized phone number to the list, select a QX extension for login. Calling the auto attendant, the trusted users’ Caller ID will be recognized and the caller will automatically be logged in to the Call Relay menu. The Caller ID will be associated with the extension in the Login Extension field and as such the caller will bypass the usual prompt to enter the extension and extension password.
Callback on Auto Attendant
Authorized callers can initiate Callback by dialing the Auto Attendant and hanging up the call during the specified time out, without waiting for the Auto Attendant prompt. QX will call back to the authorized phone number and play the Auto Attendant prompts when answered. At this point, all Auto Attendant services, like connection menu, Remote Access Menu, Call Relay Menu are available to the authorized caller. This allows authorized callers to save calling charges when using the Call Relay or other Auto Attendant services on the QX.
Click To Call Chrome extension
Epygi’s Click To Call Chrome extension is used for making one-click calls via QX to phone numbers shown on the web pages. The Chrome extension detects the phone numbers on the web page and as soon as the user hovers over one of them, a callout pops up with the detected phone number and the “Call” icon.
WebRTC Click2Call
WebRTC Click2Call feature is available on the QX3000, QX5000 and ecQX. Is used to make WebRTC calls from a web browser having WebRTC support to QX extensions or to destinations, which are external to QX.
Customizing the System Voice Messages
The system voice messages can be customized either for the selected extensions (user and auto-attendant extensions) or for all user extensions on QX at once. The following methods are available for customizing the system voice messages on QX: upload an earlier recorded file in the appropriate WEB configuration page, record a new voice message on the phone by using the appropriate option in the Voice Mail Service (VMS), or record a new voice message on the IP phone by using the Record from Extension service available for extensions.
Receptionist Phone Configuration Wizard
The Receptionist Phone Configuration Wizard allows configuring a new receptionist. Applicable to most of the Epygi supported IP phones.
Scheduling
Scheduling feature allows controlling the call routing rules and auto attendant scenarios automatically based on the preconfigured weekly schedules of working/non-working hours.
Hot Desking
Hot Desking is ideal for an office with multiple workers using a single physical phone at different time frames to log in to the handset and use it as their own extension.
Hold Music
Hold Music (“.WAV” and “.MP3” Files Upload) allows callers to hear music or a recorded message while on hold or waiting for other participants to arrive on a conference call.
IP Phones Logo
IP Phones Logo is used to upload a custom logo for the IP phones. The uploaded custom logo will be visible on the display of the IP phone.

Call Alert
Call Alert is used to notify the designated personnel about the emergency calls, as well as calls through certain call routing rules. The following information will be included in the notification: the routing pattern, the extension who placed the call, the dialed number and the call Date/Time. The notifications can be generated and displayed in the System Events, sent via E-mail, via SMS, or left as voice mail on the defined extension(s) with a voice message.
Call History
Call History gives you the ability to track and report call details (caller, call recipient, length of call, call cost, call quality etc.) on incoming and outgoing calls per extension.
Dial Plans
Dial Plans (Call Routing) allows calls to travel through a network along a pre-determined path to the end-user. This feature helps determine the least expensive way and/or least congested path to route a call. Incoming calls can also be grouped according to area code and routed to specific customer service reps who manage different geographic regions.
Class of Service
Class of Service can be used to define the permissions that PBX extensions will have when using certain call routing rules to make calls. An extension will only be allowed to use the call routing rules that have a matching Class of Service designation.
Date/Time Settings
Date/Time Settings in the call routing table allowing to secure Call Routing rules by limiting their availability for a certain time frame. When the caller attempts to use the specific Call Routing rule outside of the configured time frame, he/she will be denied access.
Time of Day Dialing
Time of Day Dialing makes it possible for calls to be routed according to the time of day. This enables you to pre-select where a call will be directed in regards to time.
PIN Barring
PIN Barring feature allows to assign and manage credits on the PIN codes configured in the QX Local AAA table. The assigned credits will be spent if the authentication by PIN option is used when making calls through call routing rules with Call Rate Settings enabled. PIN codes, which have no credits assigned cannot use the routing rules with Call Rate Settings enabled. Similar to the case where the calling credits are assigned to the QX extensions, the PIN barring feature calculates the call cost per minute and per second. Once the available credits assigned to the PIN are completely spent, placing new calls through the toll routing rules will not be possible until the available credit balance is updated, either manually or automatically. For user convenience the automatic credit balance update for PIN codes can be scheduled daily, weekly or monthly.
Overall Call Duration Limit
You may also secure Call Routing rules by putting a limit on the overall call duration for selected Call Routing rules. The duration limit can be set to limit the total duration for all calls for a specified time, such as daily.
Hot Desking
Allows an office with multiple workers using a single physical phone at different time frames to log in to the handset and use it as their own extension.

This feature allows on-hold party to listen to music streamed by the Epygi Media Streamer, which has the ability to play MP3 files instead of the pre-recorded voice stored on your QX. This feature gives you the ability to play different streams for each extension, to play very long audio files and allows the playlist selection to be easily changed.

Hold Music (“.WAV” and “.MP3” Files Upload)
The Hold Music feature allows callers to hear music or a recorded message while on hold or waiting for other participants to arrive on a conference call.
T.38 Fax, Fax Relay and Clear Channel Fax
The T.38 fax relay standard permits faxes to be transported across IP networks between existing fax terminals. A clear channel gives full use of the bandwidth for this purpose.

The HotCall Add-In application works with Microsoft Outlook allowing incoming and outgoing calls to be made within the native Outlook interface.

HotKeyCall is a Microsoft Windows software application, which allows PC users to dial telephone numbers directly from their desktop on any application window (e.g. web-browsers, e-mail client, text documents, etc.). This can be done by simply highlighting the number you wish to dial and pressing a predefined hotkey sequence (e.g. Ctrl-Y).

System Security Software
The System Security Software feature protects your IP PBX against external hackers, who could have the ability to reconfigure your system through eavesdropping, Denial of Service (DoS) or Theft of Service (ToS). Not only does the software prevent the above through internal protections, but each line also has the ability to be password protected through the security system.
Firewall
Firewall is a security service configurable through various criteria. It has three levels of security policies: low, medium and high. The Firewall allows or blocks traffic based on the policies, services and/or IP addresses. Filtering rules will take effect only if the Firewall has been enabled and are independent of the selected firewall security level. Additional service-based rules can be added.
System Security Diagnostics
System Security Diagnostics allows running the security audit and getting the security reports. The Security Audit generates warnings regarding the system’s weaknesses. The warnings may vary depending on the selected global Security Level. The Security Audit will detect security-related configuration issues in the Firewall, IDS, IP Line passwords, Call Routing and extension settings.
SIP IDS
SIP IDS allowing to prevent the SIP attacks.
Securing Calls on Auto Attendant
The auto-attendant has a digit-parsing feature that can be enabled/disabled. This option can provide a lot of flexibility and dialing options for customers but it should be used with care. When the digit-parsing feature is enabled, all digits dialed by the caller while listening to the auto-attendant prompt will be sent directly to the Call Routing table to resolve the intended destination. With this option enabled the entries in the Call Routing table need to be properly secured.
User Rights Management
User rights management is useful to the QX administrator in order to set the restrictions for certain PBX users to manage the QX configuration. It allows to set restrictions on the GUI access for various PBX users, permits or denies access to certain Web GUI configuration pages.
Class of Service
Class of Service can be used to define the permissions that PBX extensions will have when using certain call routing rules to make calls. An extension will only be allowed to use the call routing rules that have a matching Class of Service designation.
Date/Time Settings
Date/Time Settings in the call routing table allowing to secure Call Routing rules by limiting their availability for a certain time frame. When the caller attempts to use the specific Call Routing rule outside of the configured time frame, he/she will be denied access.
Call Alert
The Call Alert feature is designed to inform specific personnel about emergency calls and calls routed through specific call routing rules. The notification includes essential details such as the routing pattern, the calling extension, the dialed number, and the call date/time. These notifications can be generated and viewed in the System Events, sent via email or SMS, or left as a voice message on predefined extension(s) along with a recorded message.
 Securing Call Routing
The Local AAA Table serves as the hub for configuring and managing the local authentication database. When the Local Authentication option is enabled on the routing pattern, the caller needs to pass authorization. This can occur automatically through trusted caller ID detection, manually by entering specific login details (username and password), or by using a handset PIN code. Additionally, you have the flexibility to set an expiration period for the authentication process. Once successfully authenticated, the caller gains access to utilize the designated call routing rule.
PIN Barring
The PIN barring feature enables the assignment and management of credits for PIN codes, which are used when the authentication by PIN option is used for calls made through call routing rules with enabled Call Rate Settings. PIN codes without assigned credits cannot use routing rules with Call Rate Settings enabled.
Similar to the method used for QX extensions, the PIN barring feature calculates call costs per minute and second. Once the assigned credits are exhausted, new calls through toll routing rules become impossible until the credit balance is updated manually or automatically. Users can opt for convenient automatic credit balance updates daily, weekly, or monthly.
 Overall Call Duration Limit
The Overall Call Duration Limit may secure the Call Routing rules by putting a limit on the overall call duration for selected Call Routing rules. The duration limit can be set to limit the total duration for all calls for a specified time, such as daily.

Call Relay
Call Relay allows an external call to be relayed through your IP PBX box to an external line or vice versa.
 Call Forwarding
This allows you to program your PBX extension to redirect incoming calls to another number automatically.
 Find Me Follow Me
This feature permits employees to have calls track them down wherever they are.
SMS
This allows you to receive notice of “events” (calls, voice mails, etc.) from the PBX to your mobile phone as a text message.
 Voicemail service
The Voice Mailbox and Voice Mail Settings are readily available to all user extensions on the IP PBX by default. This Voicemail service enables the reception and storage of voice messages directly in the extension’s mailbox. It includes features like new voicemail indications, notifications, and redirection options. Additionally, users can enable or disable the Voicemail service through their extension’s admin settings.
Surveillance
Our IP PBX seamlessly integrates with your voice, video, and surveillance products, offering a unified solution for your business needs. With this surveillance feature, you receive real-time security updates 24/7 via email, cell phones, and more, ensuring a safe environment for your employees and business visitors.
 Unified Messaging
Unified Messaging integrates different message types – voicemail, email, text messaging, fax – into a single mailbox that is accessible from a variety of devices, including your office phone, PC, and cell phone.

Licensable Features for Your QX IP PBX

The following is a list of advanced features that can be purchased as licensable items for your QX IP PBX product. By offering licensable features, Epygi gives you the ability to choose what you pay for instead of being locked into a one-size-fits-all solution. These enhanced features can be added at any time during or after your IP PBX purchase.

  • IP Phone Expansion Key
    • This phone expansion key enables up to 1, 4, 8, 16, 32, 64, or 128 additional local IP phone extensions on the QX200. These additional keys can bring your unit to a maximum of 200 total IP extensions.
  • Automatic Call Distribution (ACD)
    • Automatic Call Distribution (ACD) is a purchasable feature to support call center environments, allowing for more customizable call distribution management. Adding this feature to your IP PBX product will allow your system to be used as a call center. The following describes how ACD can distribute your calls in different ways:
      • All Agent Ringing — All Agents’ phones will ring simultaneously with an incoming call.
      • Round Robin — Each of the Agents’ phones will ring sequentially until the call is picked up by an Agent.
      • Longest Idle — The call is sent to the Agent who has been idle the longest since their last call.
      • Less Busy During Last Half Hour — The Agent who has had the least talk time during the last 30 minutes will receive the call.
      • Random Hunting — Calls are routed to Agents at random.
      • Skills — The Agent with the highest composite skill grade will receive the call.
  • Epygi ACD Console (EAC)
    • The Epygi ACD Console (EAC) is a purchasable feature to enable the Web application used by call center agents, supervisors, and administrators for monitoring the queues and agents, watching the call statistics, updating the agents’ status, etc. EAC stores and formats the data and produces real-time information and statistical reports on ACD activities. The EAC is an annual renewable license. The number of EAC licenses required is determined by the number of ACD Agents and Supervisors that will be connected simultaneously to the system. Attention: The EAC relies on ACD and works only if ACD is active. EAC license expires and will need to be renewed annually.
  • Automatic Outbound Calling (AOC)
    • The Automatic Outbound Calling (AOC) is a purchasable feature for outbound calls. It automates outbound calls directly to clients. It is a web-based application designed to control and monitor automatic outbound calling
      sessions on QX. It allows the configuring, starting, controlling, and monitoring the automatic outbound calling process on the QX.
      Attention: The AOC relies on ACD and works only if ACD is active. The license for AOC expires and will need to be renewed annually.
  • Epygi Hotel Console (EHC)
    • The EHC is a hotel application complementary to the QX IP PBX line of products from Epygi. Provides telephone control and billing of telephone calls for hotel rooms, as well as supplementary functions such as room status, wake-up calls, do not disturb, and management of minibar items. Attention: The license for EHC expires and will need to be renewed annually.
  • Barge-In
    • Three unique features are enabled when the Barge-In license is activated. The Silent Monitoring, Agent Whisper, and Supervisor Barge-In are made available as enhanced features for authorized users on the IP PBX.
      • Silent Monitoring: Supervisors are able to listen in on calls by dialing *91+extension number with no audible notification to the user or external caller.
      • Whisper Mode: Supervisors are able to listen in on calls and advise users on what to say to the external caller. The supervisor’s comments are only heard by the Agent. The Supervisor can activate Whisper Mode by dialing *92+extension number. The users will hear an audible tone to notify them that their Supervisor has joined the call.
      • Supervisor Barge-In: Supervisors are able to join the established calls and have three-way calls by dialing *93+extension number. All call participants will hear an audible tone to notify them that another party has joined the call.
  • Call Recording
    • Call Recording is used to record all types of calls on the QX and store the recordings locally on the QX using internal memory or on an external server. The QX200 can support up to 32 ports of simultaneously recorded calls. The recording will start automatically as soon as the call is established or activated manually on the phone during the active call.
  • Auto Dialer Activation
    • Automate outbound calls directly to clients. The messages played to the clients can be pre-recorded and updated regularly.
  • Auto Dialer Expansion Key
    • Increases the number of concurrent outbound calls by one on the Auto Dialer Activation.
  • Calling Cost Control
    • Allows to limit and control the calling costs when making calls through payable routing rules.
  • Audio Conference Bridge
    • Audio Conference Bridge is an integrated conferencing feature that allows your company to stay connected and current around the globe. The QX200 can have a maximum of 32 audio conferencing ports with purchasable feature keys. The number of available ports determines how many active users can simultaneously be on the individual conference bridge.
  • Video Conference Bridge
    • Audio conferencing has always been the method for group communication, especially for remote users. Today, video is more affordable and offers an additional return on investment when addressing remote communication needs. The ability to visually describe something or determine moods and gestures greatly increases the effectiveness of remote communication. This feature is available after activating the appropriate feature key, in addition to purchasing the Audio Conferencing license. On the QX200, two user licenses can be purchased for a total of 16 video conference participants in all active conferences. The maximum number of video and audio participants in all active conferences is 32.
  • 3PCC Activation License
    • The QX PBX family has a full-featured Application Programming Interface (API). With this feature, applications can be designed to gain direct access to the IP phone system to enhance the feature offerings of this system.
  • eQall Softphone
    • eQall, an award-winning softphone, is compatible with Microsoft Windows and mobile devices using Android and iOS. Designed as a comprehensive replacement for desk phones, eQall is exclusively intended for use with QX/UC IP PBX appliances and Epygi ecQX, the cloud-based PBX system. Upon license activation, it registers as an extension to the QX/UC/ecQX system, functioning as a standard PBX extension without the need for a physical desk SIP phone.
  • eQall Receptionist Console
    • The Receptionist Console enhances the eQall softphone capability with the extension watching and other receptionist capabilities.
    • The Receptionist Console shows the status of the watched extensions (ringing, busy, or on a call). Allows calling the watched extensions, leaving voice mails to the mailboxes for watched extensions, transferring calls to watched extensions, as well as intercepting the calls to the watched extensions. Extensions for departments can also be grouped for easy identification.
  • eQall SMS/WhatsApp Messaging
    • Allows sending or receiving SMS/WhatsApp messages by eQall extensions globally
    • This feature requires two different licenses for activation. The initial eQall SMS/WhatsApp messaging license enables the feature on chosen QX extensions. The second license, the SMS/WhatsApp Account, allows users to add credits to messaging accounts on the QX instance. These credits within the SMS/WhatsApp Account are used by any eQall extension with the activated messaging feature, enabling them to send and receive SMS or WhatsApp messages.
  • CRM Integration
    • Customer Relationship Management (CRM) integration allows users to automatically view, create, and update the information for CRM contacts upon receiving inbound calls from customers on the IP PBX. When activated on its QX IP PBXs, the per-seat license will provide integration with Salesforce, Vtiger, and Zoho CRM.
  • System Server Redundancy Activation
    • The QX200 has the ability to be in a 1+1 redundancy design where a second unit is running as an active standby unit. The primary QX200 will need to have all of the required software licenses enabled. The secondary standby QX200 will also need all duplicate software licenses enabled, which will be included with the purchase of the System Redundancy Activation key.
  • Voicemail Transcription
    • OpenAI-powered feature converts voicemail messages into text and sends them to users via email notifications.

Free Demo Unit
